DIMENSIONS
GEARBOX
- 6-speed sequential gearbox Hewland TLS-200 with magnesium casing
- Cooled by oil exchanger
- Semi-automatic pneumatic steering wheel paddle system Hewland
CATEGORY
LMP2
BODYWORK
Carbon / HP
COMPOSITES
WEIGHT
930kg
FUEL TANK
ATL 75 Litres
CATEGORY
LMP2
BODYWORK
Carbon / HP
COMPOSITES
FUEL TANK
ATL 100 Litres
WEIGHT
930kg
ENGINE
Nissan Technology VK50
SUSPENSION
- Double wishbone
- Pushrod and torque rod at the front and spring at the rear
- Lastest generation of 4-way shock absorbers
- Adjustable anti-roll bar system
- 3rd element front and rear
ELECTRONICS
Data acquisition system and integrated telemetry to the ECU – Cosworth MQ12Di

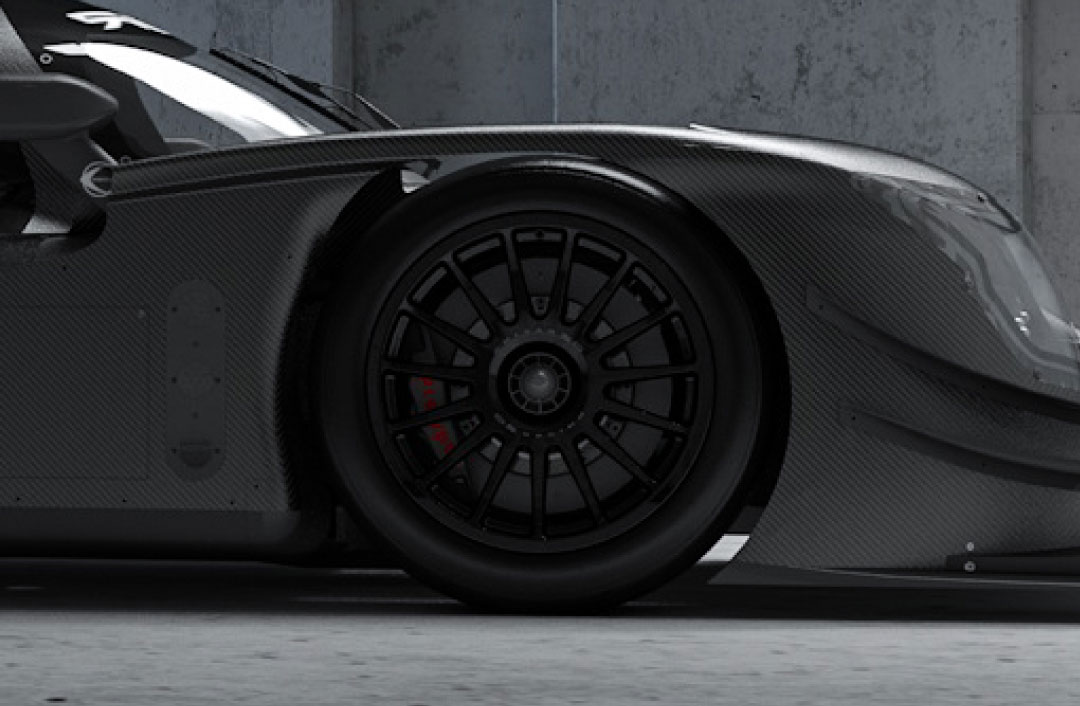

BRAKES
- Master-cylinder AP Racing
- 6-piston calipers Brembo
- 15’’ front and rear
carbon discs AP Racing
BRAKES
- Master-cylinder AP Racing
- 6-piston calipers Brembo
- 15’’ front and rear
carbon discs AP Racing

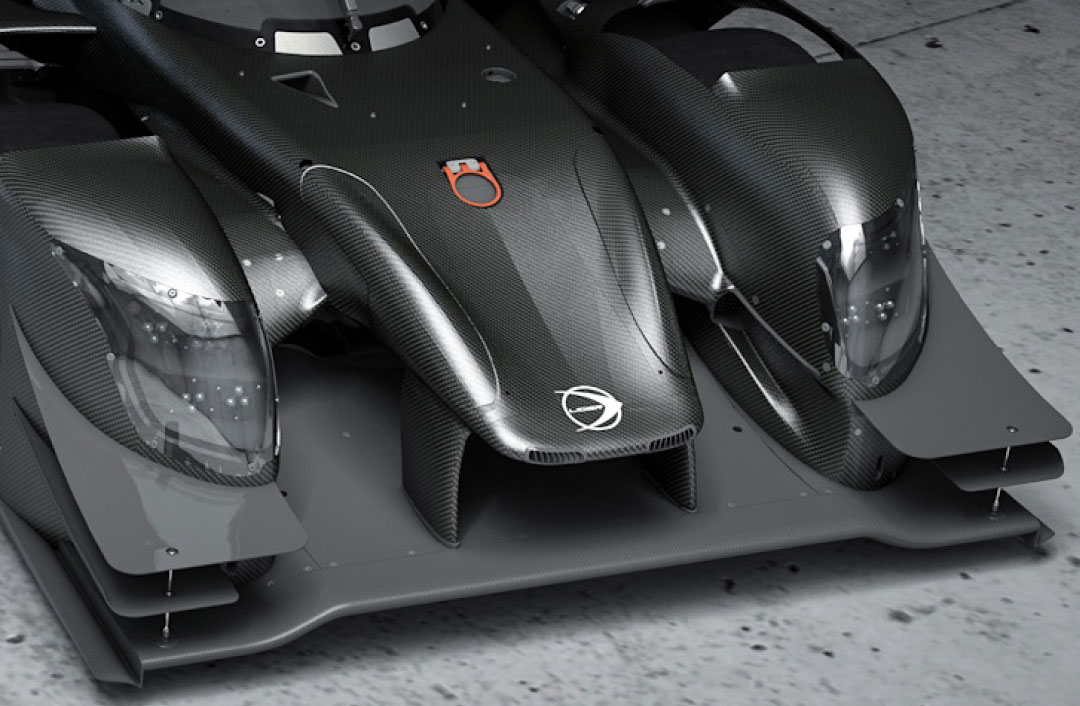

CHASSIS
- Carbon monocoque
HP Composites
CHASSIS
- Carbon monocoque
HP Composites

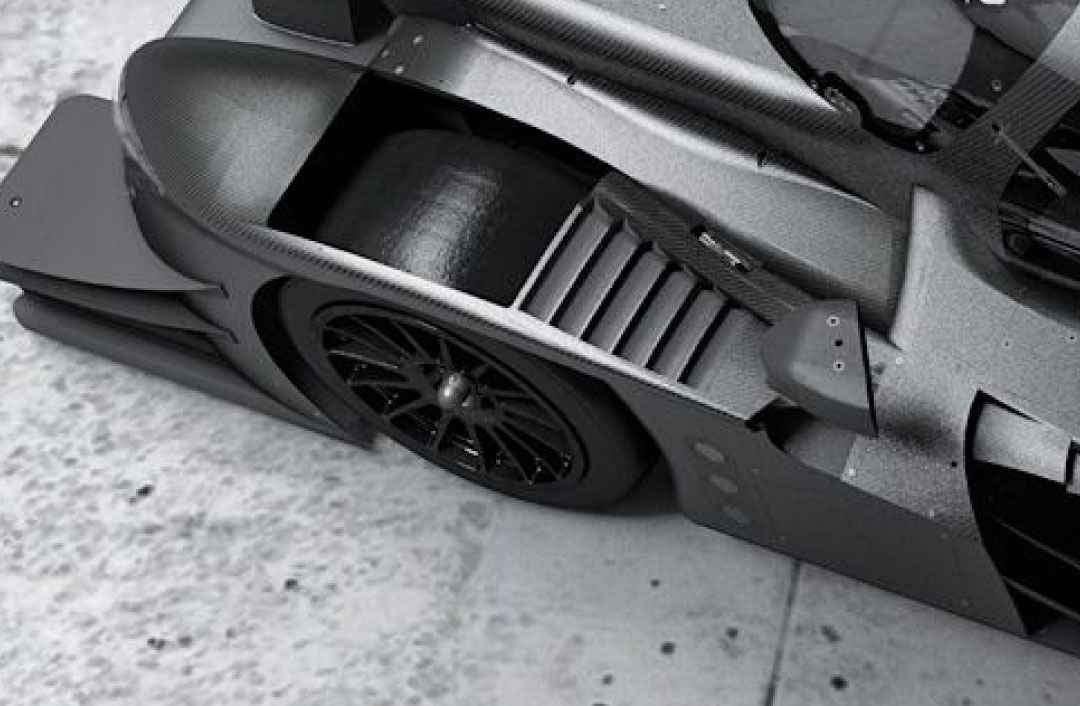

WHEELS
- 18’’ Magnesium OZ Racing
- Front width: 12.5’’
- Rear width: 13’’
WHEELS
- 18’’ Magnesium OZ Racing
- Front width: 12.5’’
- Rear width: 13’’
